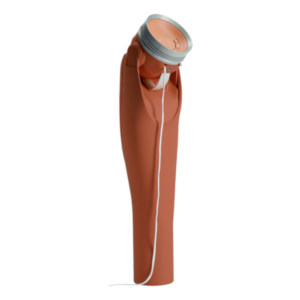

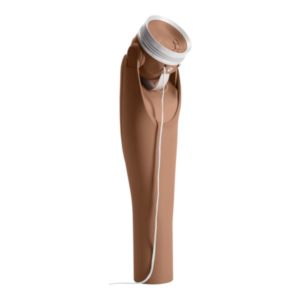

DynamicArm Plus
Item #: 12K110N=50-1Overview
For users with more than 2 myo signals
Like the DynamicArm, the 12K110N DynamicArm Plus elbow joint is myoelectrically-controlled and driven by an electric motor. It is intended for fitting users with transhumeral or higher amputation levels or users with more than 2 original signals.
The DynamicArm Plus has the same features as the DynamicArm standard. In addition, it can also process up to 8 input signals.
Key Benefits:
- Control with up to 6 MyoBock electrodes and up to 2 switches
- High lifting and holding force
- Natural, delicate control with quick, precise positioning
- Attractive appearance
- Low noise level, no noise at all during free swing
- Natural free swing behavior
DynamicArm Plus is suitable for combination with other myoelectric prosthetic components from Ottobock, such as:
- 10S17 Electric Wrist Rotator
- 8E38=8* SensorHand Speed
- 8E38=9* MyoHand VariPlus Speed
- 8E33=9 System Electric Greifer DMC VariPlus
Other prosthesis components can not be used. DynamicArm Plus is configured by means of the 646C57 software. In order to do so, DynamicArm Plus is connected to PC via integrated Bluetooth module.
Scope of delivery:
- DynamicArm Plus 12K110N*
- Dummy for electric wrist rotator
- Battery charger with EU and US plug
- Lamination ring
- Assembly hook
- Alignment tool
- 2 Year Manufacturer's Warranty
Optional items ordered separately:
- Coaxial plug or Electric wrist rotator
- Input device & cables
- 3rd Year Extended Warranty: DynamicArm Plus SP-12K110N=3
Specifications
Article Number | Model | Size | Color Number | Color Description |
---|---|---|---|---|
12K100N=45 | DynamicArm | 45mm | 4 | Tan |
12K100N=50 | DynamicArm | 50mm | 4 | Tan |
12K100N=45-7 | DynamicArm | 45mm | 7 | Jet Black |
12K100N=50-7 | DynamicArm | 50mm | 7 | Jet Black |
12K100N=50-1 | DynamicArm | 50mm | 11 | Medium Brown |
12K100N=50-2 | DynamicArm | 50mm | 15 | Dark Brown |
12K110N=45 | DynamicArm Plus | 45mm | 4 | Tan |
12K110N=50 | DynamicArm Plus | 50mm | 4 | Tan |
12K110N=45-7 | DynamicArm Plus | 45mm | 7 | Jet Black |
12K110N=50-7 | DynamicArm Plus | 50mm | 7 | Jet Black |
12K110N=50-1 | DynamicArm Plus | 50mm | 11 | Medium Brown |
12K110N=50-2 | DynamicArm Plus | 50mm | 15 | Dark Brown |
Accessories
Documents
UL Documentation Packet
Reimbursement: Documentation Guide
Reimbursement
PDF Document | Published: Feb 28, 2020
DynamicArm 12K100N and DynamicArm Plus 12K110N - Patient Information
Product Information
PDF Document | Published: May 4, 2021
12K100N DynamicArm Casting and Lamination Instructions
Product Information
PDF Document | Published: Jul 15, 2015
DynamicArm Plus 12K110N - Default Settings
Product Information
PDF Document | Published: Aug 1, 2012
Elbow Components – At a Glance Features, Improvements, Differences
Product Information
PDF Document | Published: Nov 1, 2014
12K110N DynamicArm Plus - Instructions for Use (Qualified Personnel)
Instructions for Use
PDF Document | Published: May 4, 2021
