Active TH Harness

Item #: 21A47
Log in to order

Overview

The arm loop (axilla cuff) portion of our Active TH (trans-humeral) soft harness is now available separately (article numbers 21A48). This provides users with the flexibility to mix and match sizes as well as the option to only replace the arm loop when necessary.

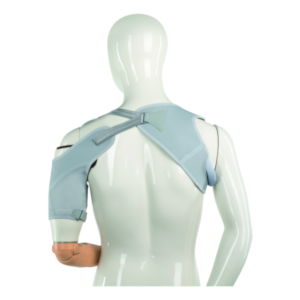

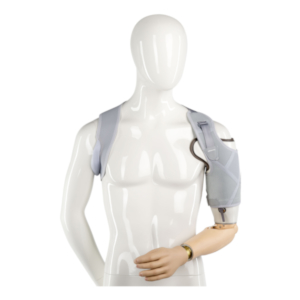

The Active TH Harness offers users a new level of comfort and support. Designed for transhumeral fittings with myoelectric or passive elbows, the support is completely removable and suspends the socket without the need for additional straps.

The harness consists of an arm sling and sleeve with a belt guide at the back which allows for more natural arm swing and physiologic movement. Users will enjoy the enhanced comfort of washable, moisture-wicking material and axillary padding that allows for better pressure distribution. A hook-and-loop fastener in the front enables the user to make fine adjustments in certain situations, e.g. when carrying something heavy..

Features and user benefits of the Active TH Harness:

No attachment to the socket  – the harness itself isn’t fixed to the socket, so it can be completely removed

Soft / High Quality Materials – enhanced underarm padding and breathable materials that absorb perspiration

Hygienic – all parts are machine washable up to 86° Fahrenheit

Permits Natural Movement – the strap guide on the back allows the contralateral arm to swing naturally when walking

Improved Pressure Distribution – padding in the crook of the arm improves pressure distribution

Easy Adjustments – the length of the strap can be easily adjusted for the user by the clinician. Additionally, users can make small adjustments directly using the hook-and-loop closure. For example, they can tighten or loosen the harness when carrying heavy objects. It is also removable with one hand.

Versatile – may be modified for additional control straps, etc.

Ideally complemented to our 12K100N/12K110N* Dynamic Arms and 12K50=* ErgoArms

Specifications

Size Back Width Armhole Circumference Article Number (Left) Article Number (Right)
Small 30 - 36.6 cm 38 - 45.3 cm 21A47=L-S-1 21A47=R-S-1
Medium 36.6 - 43.2 cm 45.3 - 52.6 cm 21A47=L-M-1 21A47=R-M-1
Large 43.2 - 50 cm 52.6 - 60 cm 21A47=L-L-1 21A47=R-L-1

Documents

Refine results

21A47 Active TH Harness - Specification Sheet

Product Information

PDF Document | Published: Apr 2, 2020
