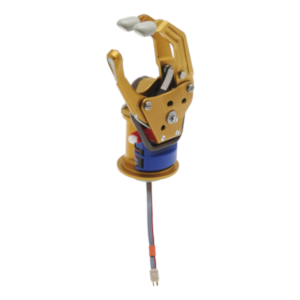

SensorHand Speed

Item #: 8E39=8

With lamination ring for wrist disarticulation

Added to your shopping cart

Overview

SensorHand Speed with lamination ring wrist connection suitable for wrist disarticulation. Passive wrist rotation with friction. The SensorHand Speed features the automatic Auto-Grasp SUVA sensor technology, the FlexiGrip function as well as different control modes for the fitting with one or two electrodes.

13E184=* Coding Plugs of various colours or the 757T13 MyoSelect are used to select the desired control mode. Please also note the table in the user manual for this.

13E184=1 (white: DMC plus control)
13E184=2 (red: AutoControl LowInput control)
13E184=3 (green: AutoControl)
13E184=4 (blue: VarioControl)
13E184=5 (yellow: VarioDual Control)
13E184=6 (violet: DMC plus Control SUVA sensors and FlexiGrip can be switched off)

The SensorHand Speed can be operated with the 757B35=* MyoEnergy Integral, the 757B20/757B21 EnergyPack or the 757B15 X-ChangePack. It features a central flat cable, automatic shut-off electronics and integrated on-off switch, low friction bevel gear, positive back lock, and System Inner Hand. An integrated slip clutch allows the hand to be opened in case of power supply or myoelectric control failure.

MyoSelect Required for Programming

Specifications

Article number	Side	Size	Operating voltage	Opening width	Proportional gripping force	Proportional speed	Weight with inner hand	For
8E39=8-L7 1/4	Left	7 1/4	6/7.2 V	100 mm	0-100 N	15-300 mm/sec	462 g	Women, Adolescents
8E39=8-L7 3/4	Left	7 3/4	6/7.2 V	100 mm	0-100 N	15-300 mm/sec	462 g	Men
8E39=8-L8 1/4	Left	8 1/4	6/7.2 V	100 mm	0-100 N	15-300 mm/sec	462 g	Men
8E39=8-R7 1/4	Right	7 1/4	6/7.2 V	100 mm	0-100 N	15-300 mm/sec	462 g	Women, Adolescents
8E39=8-R7 3/4	Right	7 3/4	6/7.2 V	100 mm	0-100 N	15-300 mm/sec	462 g	Men
8E39=8-R8 1/4	Right	8 1/4	6/7.2 V	100 mm	0-100 N	15-300 mm/sec	462 g	Men

Myo Glove Sizing for Hands
Hand Size	For	Standard Glove Article Number	Skin Natural Glove Article Number
5	Children 1-3 yrs old	8S20=136x41 (L/R) color	8S20N=136x41 (L/R) color
5 1/2	Children 3-6 yrs old	8S20=147x45 (L/R) color	8S20N=147x45 (L/R) color
6	Children 5-10 yrs old	8S20=162x56 (L/R) color	8S20N=162x56 (L/R) color
6 1/2	Children 8-13 yrs old	8S20=177x64 (L/R) color	8S20N=177x64 (L/R) color
7	Women, Adolescents	8S13=7 (L/R) color	8S13=7 (L/R) color
7 1/4	Men, Adolescents	8S11=190x76 (L/R) color	8S11N=190x76 (L/R) color
7 1/4	Women	8S12=190x78 (L/R) color	8S12N=190x78 (L/R) color
7 3/4	Men	8S11=210x78 (L/R) color	8S11N=210x78 (L/R) color
8 1/4	Men	8S11=225x80 (L/R) color	8S11N=225x80 (L/R) color
