Battery Receptacle Set

Item #: 757Z190
Log in to order

Overview

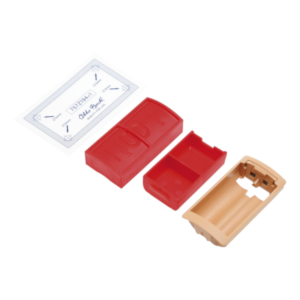

The 757Z190=* battery mounting set is used to fabricate a battery receptacle into either a laminated outershell or an Ottobock elbow unit, such as an ErgoArm elbow. The 757Z190=* battery mounting set is designed for small size 757B21 lithium-ion myo batteries and is available in two versions:

Standard version:
  • Available in four colors (4, 11, 15 and black)
  • Does not connect to MyoBoy
  • Uses 13E188=200 or 13E188=600 battery cables
  • Once installed it is not removable from prosthesis

MyoBoy version:
  • Available in color 4 only
  • Includes integrated screw connection for removing the battery box from the prosthesis
  • Includes external capped outlet for connection to MyoBoy device
  • Uses 757P41 cable for connection to battery box and 9E169 coaxial plug or 13E205
  • MyoRotronic and 757P41 cable for 757P39 MyoBoy connection cable

Specifications

Article number Color For use with: Includes: Connection cable options: Removable from prosthesis: Version
757Z190=1 4 757B21 Battery (color 4) 757Z191=1 Battery box, 757Z186 Locking Lever, 757Z193=1 Spacer Insert, 757Z192=1 Casting Template, 757Z194=1 Foil Template 13E188=200 battery cable 13E188=600 battery cable No Standard
757Z190=1-1 11 757B21-1 Battery (color 11) 757Z191=1-1 Battery box, 757Z186-1 Locking Lever, 757Z193=1 Spacer Insert, 757Z192=1 Casting Template, 757Z194=1 Foil Template 13E188=200 battery cable 13E188=600 battery cable No Standard
757Z190=1-2 15 757B21-2 Battery (color 15) 757Z191=1-2 Battery box, 757Z186-2 Locking Lever, 757Z193=1 Spacer Insert, 757Z192=1 Casting Template, 757Z194=1 Foil Template 13E188=200 battery cable 13E188=600 battery cable No Standard
757Z190=1-3 Black 757B21-3 Battery (Black) 757Z191=1-3 Battery box, 757Z186-3 Locking Lever, 757Z193=1 Spacer Insert, 757Z192=1 Casting Template, 757Z194=1 Foil Template 13E188=200 battery cable 13E188=600 battery cable No Standard
757Z190=2 4 757B21 Battery (color 4) and can be connected to MyoBoy. 757Z191=2 Battery box, 757Z186 Locking Lever, 757Z192=1 Casting Template, 757Z194=1 Foil Template, 757Z202 Plug, 506G1=M3x10 Set Screw Use 757P41 cable for connection to battery receptacle and 9E169 coaxial plug or 13E205 MyoRotronic. Has exterior capped connection for 757P39 MyoBoy connection cable. Yes MyoBoy
