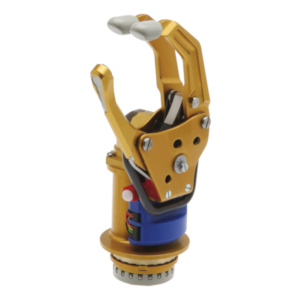

SensorHand Speed

Item #: 8E38=8
With quick disconnect wrist
Log in to order

Overview

SensorHand Speed with quick-disconnect wrist is suitable for all amputation levels, except wrist disarticulation. Passive wrist rotation with ratchet lock (can be replaced with the 11S30 Friction Ring). The SensorHand Speed features the automatic Auto-Grasp SUVA sensor technology, the FlexiGrip function as well as different control modes for the fitting with one or two electrodes.

13E184=* Coding Plugs of various colours or the 757T13 MyoSelect are used to select the desired control mode. Please also note the table in the user manual for this.

13E184=1 (white: DMC plus® control)
13E184=2 (red: AutoControl LowInput control)
13E184=3 (green: AutoControl)
13E184=4 (blue: VarioControl)
13E184=5 (yellow: VarioDual Control)
13E184=6 (violet: DMC plus® Control SUVA sensors and FlexiGrip can be switched off)

The SensorHand Speed® can be operated with the 757B35=* MyoEnergy Integral, the 757B20/757B21 EnergyPack or the 757B15 X-ChangePack.

With central coaxial plug connection, automatic shut-off electronics and integrated on-off switch, low-friction bevel gear, positive back lock and system inner hand. An integrated slip clutch allows the hand to be opened in case of power supply or myoelectric control failure.

The electrode(s) must be adjusted with the 757M11 MyoBoy.

  • MyoSelect Required for Programming

Specifications

Article
number
Side Size Operating
voltage
Opening
width
Proportional
speed
Proportional
gripping force
Weight with
inner hand
For
8E38=8-L7 1/4 Left 7 1/4 6/7.2 V 100 mm 15-300 mm/sec 0-100 N ~462 g Women, Adolescents
8E38=8-L7 3/4 Left 7 3/4 6/7.2 V 100 mm 15-300 mm/sec 0-100 N ~462 g Men
8E38=8-L8 1/4 Left 8 1/4 6/7.2 V 100 mm 15-300 mm/sec 0-100 N ~462 g Men
8E38=8-R7 1/4 Right 7 1/4 6/7.2 V 100 mm 15-300 mm/sec 0-100 N ~462 g Women, Adolescents
8E38=8-R7 3/4 Right 7 3/4 6/7.2 V 100 mm 15-300 mm/sec 0-100 N ~462 g Men
8E38=8-R8 1/4 Right 8 1/4 6/7.2 V 100 mm 15-300 mm/sec 0-100 N ~462 g Men
Myo Glove Sizing for Hands
Hand Size For Standard Glove
Article Number
Skin Natural Glove
Article Number
5 Children 1-3 yrs old 8S20=136x41 (L/R) color 8S20N=136x41 (L/R) color
5 1/2 Children 3-6 yrs old 8S20=147x45 (L/R) color 8S20N=147x45 (L/R) color
6 Children 5-10 yrs old 8S20=162x56 (L/R) color 8S20N=162x56 (L/R) color
6 1/2 Children 8-13 yrs old 8S20=177x64 (L/R) color 8S20N=177x64 (L/R) color
7 Women, Adolescents 8S13=7 (L/R) color 8S13=7 (L/R) color
7 1/4 Men, Adolescents 8S11=190x76 (L/R) color 8S11N=190x76 (L/R) color
7 1/4 Women 8S12=190x78 (L/R) color 8S12N=190x78 (L/R) color
7 3/4 Men 8S11=210x78 (L/R) color 8S11N=210x78 (L/R) color
8 1/4 Men 8S11=225x80 (L/R) color 8S11N=225x80 (L/R) color
