MyoHand VariPlus Speed

Item #: 8E38=9
With quick disconnect wrist
Log in to order

Overview

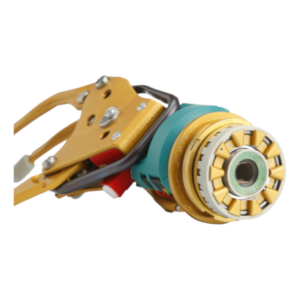

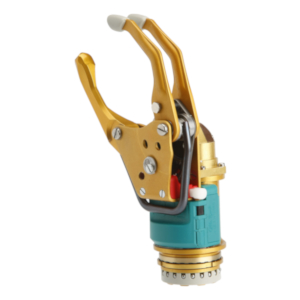

MyoHand VariPlus Speed with quick disconnect wrist is suitable for all amputation levels except wrist disarticulation. It combines the mechanical characteristics of the SensorHand Speed and the control options of the DMC VariPlus System Electric Greifer. Thanks to the high gripping strength (approx. 100 N) and speed (up to 300 mm/s), objects can be gripped quickly and precisely.

With the 757T13 MyoSelect, a total of 6 different programs can be selected and adapted according to patient indications. This permits optimum adaptation to the needs and abilities of the prosthesis wearer.

The following control modes can be selected with the 757T13 MyoSelect:

  • DMC plus
  • AutoControl LowInput
  • VarioControl
  • VarioDual
  • DigitalControl
  • DoubleChannel Control

The MyoHand VariPlus Speed can be operated with the 757B35=* MyoEnergy Integral, the 757B20/757B21 EnergyPack or the 757B15 X-ChangePack.

With central coaxial plug connection, automatic shut-off electronics and integrated on-off switch, low-friction bevel gear, positive back lock and system inner hand. An integrated slip clutch allows the hand to be opened in case of power supply or myoelectric control failure.

  • MyoSelect Required for Programming

Specifications

Article
number
Side Size Operating
temperature
Opening
width
Proportional
gripping force
Proportional
speed
For
8E38=9-L7 1/4 Left 7 1/4 0 to +70 degrees C 100 mm 0 - 100 N 15 - 300 mm/sec Women, Adolescents
8E38=9-L7 3/4 Left 7 3/4 0 to +70 degrees C 100 mm 0 - 100 N 15 - 300 mm/sec Men
8E38=9-L8 1/4 Left 8 1/4 0 to +70 degrees C 100 mm 0 - 100 N 15 - 300 mm/sec Men
8E38=9-R7 1/4 Right 7 1/4 0 to +70 degrees C 100 mm 0 - 100 N 15 - 300 mm/sec Women, Adolescents
8E38=9-R7 3/4 Right 7 3/4 0 to +70 degrees C 100 mm 0 - 100 N 15 - 300 mm/sec Men
8E38=9-R8 1/4 Right 8 1/4 0 to +70 degrees C 100 mm 0 - 100 N 15 - 300 mm/sec Men
Myo Glove Sizing for Hands
Hand Size For Standard Glove
Article Number
Skin Natural Glove
Article Number
5 Children 1-3 yrs old 8S20=136x41 (L/R) color 8S20N=136x41 (L/R) color
5 1/2 Children 3-6 yrs old 8S20=147x45 (L/R) color 8S20N=147x45 (L/R) color
6 Children 5-10 yrs old 8S20=162x56 (L/R) color 8S20N=162x56 (L/R) color
6 1/2 Children 8-13 yrs old 8S20=177x64 (L/R) color 8S20N=177x64 (L/R) color
7 Women, Adolescents 8S13=7 (L/R) color 8S13=7 (L/R) color
7 1/4 Men, Adolescents 8S11=190x76 (L/R) color 8S11N=190x76 (L/R) color
7 1/4 Women 8S12=190x78 (L/R) color 8S12N=190x78 (L/R) color
7 3/4 Men 8S11=210x78 (L/R) color 8S11N=210x78 (L/R) color
8 1/4 Men 8S11=225x80 (L/R) color 8S11N=225x80 (L/R) color
