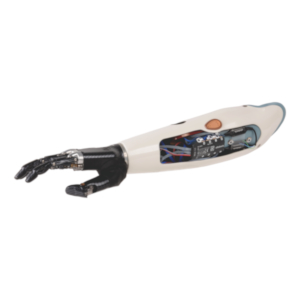

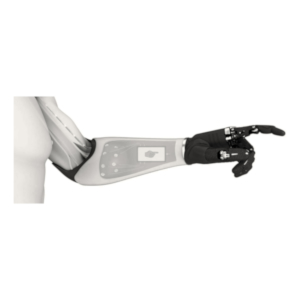

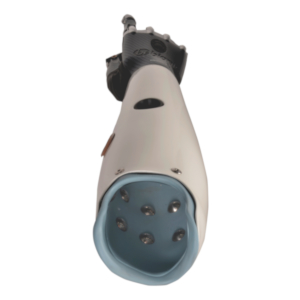

Myo Plus TR
Item #: 13E520Main processor for Myo Plus TR (trans-radial) pattern recognition system
Overview
The Myo Plus TR pattern recognition system by Ottobock received FDA clearance in September 2019 and is the most innovative control device for trans-radial myo-electric users.
Myo Plus pattern recognition provides intuitive and individualized control by mapping a user’s unique muscle patterns and translating them directly into various movements of the prosthesis. For example, if the user thinks of opening his/her hand and activates the physiologic muscles used for that task, the system immediately translates these signals to open the prosthetic hand or terminal device. This innovative control is considerably easier to master, eliminates the need for switching events and improves speed and proportional control.
Scope of Delivery:
- 1 pc. 13E520 Myo Plus TR
- 1 pc. 646C107 Bluetooth PIN card
- 1 pc. lug wrench
- 1 pc. lamination dummy for Myo Plus TR
- 1 pc. positioning gauge for O&P professional 623F50
- 3 pc. 13Z164 cable marking
- 1 pc. cable pull-off protection cap
- 1 pc. No Carbon Zone sticker
- 1 pc. 647G1381 instructions for use (qualified personnel)
- 1 pc. 647G1382 instructions for use (user)
Specifications
Article Number | 13E520 |
Dimensions | 67 x 27 x 9.2 mm/2.64 x 1.1 x .0.36 inch |
Weight | 15 g/0.53 oz |
Operating Voltage | 6V - 11.1 V DC |
Current Draw | max. 25 mA |
Power Supply | MyoEnergy Integral 757B35=3, =5 or 757B20, 757B21 |
Service Life | 5 years |
Operating Time | MyoBock hand: 14 hours bebionic hand: 8 hours |
