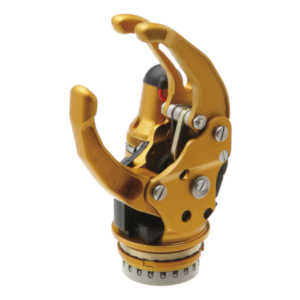

System Electric Hand DMC Plus

Item #: 8E38=6

With quick disconnect wrist

Added to your shopping cart

Overview

Quick Disconnect Wrist suitable for all amputation levels except wrist disarticulation
Specifically designed for adolescents or women with small hands
Best choice for those who don’t utilize the AutoGrasp function
Dynamic Mode Control (DMC) plus control system offers additional security for user and is engaged by removing a function plug
Three power supply alternatives accommodate variable residual limb shapes

Passive wrist rotation with ratchet lock (can be replaced by the 11S30 Friction Ring). The DMC plus control features a DMC and DMC plus control mode. The desired control mode is selected with the integrated 13E185 Function Plug. In DMC plus control mode, after gripping once with maximum grip force, a higher signal is required to open the hand. This reduces the risk of opening the hand with undesired muscle signals. In this system, two independent measurement and control systems proportionally control gripping speed as well as gripping force. Gripping speed and gripping force are determined by the strength of the muscle signal.

The System Electric Hand DMC plus can be operated with the 757B35=* MyoEnergy Integral, the 757B20/757B21 EnergyPack or the 757B15 X-ChangePack. It features a central coaxial plug connection, automatic shut-off electronics and integrated on-off switch, low-friction bevel gear, positive back lock and system inner hand. An integrated slip clutch allows the hand to be opened in case of power supply or myoelectric control failure.

The electrodes must be adjusted with the 757M11 MyoBoy.

Specifications

Article number	Side	Size	Operating voltage	Opening width	Proportional gripping force	Proportional speed	Weight with inner hand	For
8E38=6-L7	Left	7	6/7.2 V	79 mm	0-90 N	15-130 mm/sec	~355 g	Women, Adolescents
8E38=6-R7	Right	7	6/7.2 V	79 mm	0-90 N	15-130 mm/sec	~355 g	Women, Adolescents

Myo Glove Sizing for Hands
Hand Size	For	Standard Glove Article Number	Skin Natural Glove Article Number
5	Children 1-3 yrs old	8S20=136x41 (L/R) color	8S20N=136x41 (L/R) color
5 1/2	Children 3-6 yrs old	8S20=147x45 (L/R) color	8S20N=147x45 (L/R) color
6	Children 5-10 yrs old	8S20=162x56 (L/R) color	8S20N=162x56 (L/R) color
6 1/2	Children 8-13 yrs old	8S20=177x64 (L/R) color	8S20N=177x64 (L/R) color
7	Women, Adolescents	8S13=7 (L/R) color	8S13=7 (L/R) color
7 1/4	Men, Adolescents	8S11=190x76 (L/R) color	8S11N=190x76 (L/R) color
7 1/4	Women	8S12=190x78 (L/R) color	8S12N=190x78 (L/R) color
7 3/4	Men	8S11=210x78 (L/R) color	8S11N=210x78 (L/R) color
8 1/4	Men	8S11=225x80 (L/R) color	8S11N=225x80 (L/R) color
