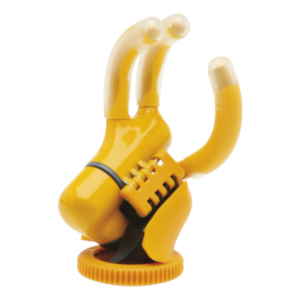

Otto Bock Electrohand 2000

Item #: 8E51
Myo hand for children
Log in to order

Overview

The System 2000 Children's electric hand system can be used for children 1 1/2 to 13 years old and is suitable for virtually all levels of amputation. The thumb and fingers rotate around the same axis, thereby executing a more compact rotation. Depending on the controller, it can be used for 4.8 V and 7.4 V children’s hand fittings. It has passive hand rotation and centralized friction contact.

  • In combination with the MyolinoWrist 2000 ball wrist joint with adjustable friction, the Electric Hand 2000 can be positioned in all directions
  • Compensating movements of the arm are largely avoided
  • Movement patterns and the body posture appear more natural
  • Intelligent Battery Management


Delivery includes 9E347=* finger filler but does not include cosmetic glove (8S20*), controller (9E420*, 9E369 or 9E370) or lamination ring (10S16=*).


Available in four sizes:

  • Size 5 for children between 1 1/2 and 3 years old
  • Size 5 1/2 for children between 3 and 6 years old
  • Size 6 for children between 5 and 10 years old
  • Size 6 1/2 for children between 8 and 13 years old



  • MyoSelect Required for Programming

Specifications

Article
number
Side Size Operating
voltage
Opening
width
Approx. minimum
grip force
Weight
(without glove)
8E51=L5 Left 5 4.8/7.4 V 28 mm 8 N 86 g
8E51=L5 1/2 Left 5 1/2 4.8/7.4 V 37 mm 25 N 115 g
8E51=L6 Left 6 4.8/7.4 V 52 mm 35 N 125 g
8E51=L6 1/2 Left 6 1/2 4.8/7.4 V 58 mm 35 N 130 g
8E51=R5 Right 5 4.8/7.4 V 28 mm 8 N 86 g
8E51=R5 1/2 Right 5 1/2 4.8/7.4 V 37 mm 25 N 115 g
8E51=R6 Right 6 4.8/7.4 V 52 mm 35 N 125 g
8E51=R6 1/2 Right 6 1/2 4.8/7.4 V 58 mm 35 N 130 g
Myo Glove Sizing for Hands
Hand Size For Standard Glove
Article Number
Skin Natural Glove
Article Number
5 Children 1-3 yrs old 8S20=136x41 (L/R) color 8S20N=136x41 (L/R) color
5 1/2 Children 3-6 yrs old 8S20=147x45 (L/R) color 8S20N=147x45 (L/R) color
6 Children 5-10 yrs old 8S20=162x56 (L/R) color 8S20N=162x56 (L/R) color
6 1/2 Children 8-13 yrs old 8S20=177x64 (L/R) color 8S20N=177x64 (L/R) color
7 Women, Adolescents 8S13=7 (L/R) color 8S13=7 (L/R) color
7 1/4 Men, Adolescents 8S11=190x76 (L/R) color 8S11N=190x76 (L/R) color
7 1/4 Women 8S12=190x78 (L/R) color 8S12N=190x78 (L/R) color
7 3/4 Men 8S11=210x78 (L/R) color 8S11N=210x78 (L/R) color
8 1/4 Men 8S11=225x80 (L/R) color 8S11N=225x80 (L/R) color
