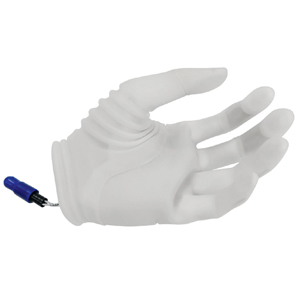

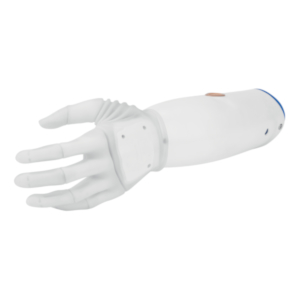

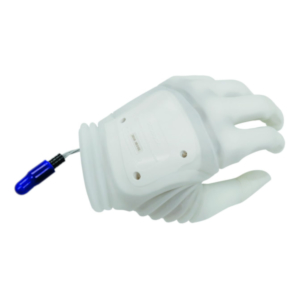

Michelangelo Hand Transcarpal

Item #: 8E550=R-M
Log in to order

Overview

The Michelangelo Hand Transcarpal makes it possible to fit users with long residual limbs and transcarpal-level amputations.

Features:

  • Proven technology and features of the Michelangelo Hand
  • Short build height – almost 50mm shorter than the normal Michelangelo Hand
  • Easy to use alignment options for socket attachment with +/-15° adjustment range

Scope of Delivery:

  • 1 pc. 8E550=L/R-M Michelangelo Hand Transcarpal
  • 1 pc. 10S550=M lamination ring. Includes the lamination dummies for the upper and lower side in addition to the lamination ring.
  • 8 pc. 501S101=M4x12 countersunk head screws
  • 8 pc. 501S84=M4x14 countersunk head screws
  • 1 pc. cosmetic case for battery charger and power supply


The Axon-Bus system is system for transcarpal, transradial and transhumeral fittings. Axon stands for adaptive eXchange Of Neuroplacement data. The Axon-Bus itself is a new development by Ottobock for the field of exoprosthetics. It was derived from safety-related bus systems in the aviation and automotive industries and is a true innovation of our Research and Development department.

The advantage is that it constitutes an optimised, self-contained data transmission system. The individual components communicate with each other perfectly, eliminating losses in terms of data transmission, speed and functionality. This results in a plus in safety and reliability for the user. Compared to conventional systems, this is achieved by a significant reduction in sensitivity to outside interference.

In combination with the Michelangelo hand, the Axon-Bus system offers more degrees of freedom than ever before. The user benefits from enhanced hand functionality. The modular prosthesis system can be expanded with additional components in the future.

Specifications

Michelangelo Michelangelo Transcarpal
Reference number 8E500 8E550
Article number (left side) 8E500=L-M 8E550=L-M
Article number (right side) 8E500=R-M 8E550=R-M
Size M (7 3/4) M (7 3/4)
Weight 510 g 460 g
Length: Middle finger to proximal hand 180 mm na
Length: Middle finger to proximal including passive wrist 225 mm na
Length: Middle finger to proximal including active wrist 232 mm na
Length: Middle finger to end of lamination ring na 160 mm
Operating voltage 11,1 V 11,1 V
Operating temperature -10 to +60 degrees C -10 to +60 degrees C
Storage temperature (-)20 - (+) 40 degrees C (-)20 - (+) 40 degrees C
Relative humidity max. 80% non-condensing max. 80% non-condensing
Opening width 120 mm 120 mm
Gripping force in Opposition Mode 70 N 70 N
Gripping force in Lateral Mode 60 N 60 N
Gripping force in Neutral Mode 15 N 15 N
Average speed 325 mm/sec 325 mm/sec
for Women, men Women, men
