AxonHook

Item #: 8E600=L

Log in to order

Overview

With the AxonHook, Michelangelo users are free to choose. In addition to the Michelangelo Hand, the AxonHook is designed to meet the performance needs of the most demanding wearers by increasing the number of functional work tasks available. Transradial and transhumeral patients can now benefit from the Michelangelo Hand as well as the powerful and rugged AxonHook. This is the perfect combination of terminal devices required for everyday tasks.

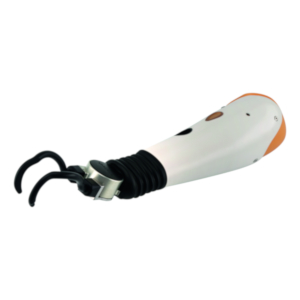

The AxonWrist (included) allows users to easily swap between the Michelangelo Hand and the AxonHook. All wrist functionality of the Michelangelo Hand is implemented into the AxonHook. This allows users to choose the most appropriate terminal device for maximum versatility and independence in everyday life. Combined with the AxonRotation or even with the AxonArm Ergo for TH fittings, it will be the preferred choice of the highly active prosthetic wearer.



Scope of delivery:

  • AxonHook (8E600=*)




Specifications

Weight approx. 400 g (w/ flexible wrist)
Grip force on hook tips 110N +/- 15N (approx. 25 lbs)
Speed Maximum 173 mm/s
Opening width approx. 120 mm
Temperature range 14 degrees F to 140 degrees F / -10 degrees C to +60 degrees C
Relative humidity max. 93%

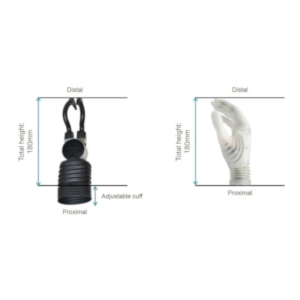

Length: Tip of hook to proximal connection point 180 mm

Documents

Refine results

APS-Michelangelo Reimbursement Guide

Reimbursement: (EN)

Publish date:

PDF Document (Michelangelo_ReimbGuide_03090.pdf | 828 KB)

APS-Michelangelo Billing Tips (US only)

Reimbursement: (EN)

Publish date:

PDF Document (MichelaneloBillTips_03090-US.pdf | 375 KB)

APS-Michelangelo Coding Options (US Only)

Reimbursement: (EN)

Publish date:

PDF Document (MichelangeloCodeOptions_03030_US.pdf | 276 KB)

UL Documentation Packet

Reimbursement: (EN)

Publish date: Feb 28, 2020

PDF Document (UL_Documentation_Packet_02280.pdf | 2 MB)

8E600 AxonHook - Specification Sheet

Product Information: (EN)

Publish date:

PDF Document (13213B_AxonHook_Spec_Sheet.pdf | 213 KB)

8E600 AxonHook - Instructions for Use (qualified personnel)

Instructions for Use: 647G1001 (EN/DE/FR/IT/ES/PT/NL/SV/DA/NO/FI/CS)

Publish date: Jan 8, 2015

PDF Document (647G1001-INT-03-1501w.pdf | 2 MB)
