Overview

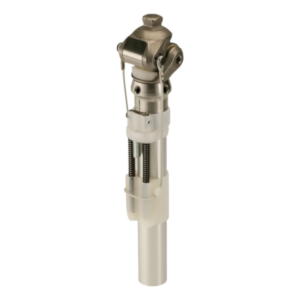

The swing block is connected to the upper joint section through the swing axis and with the lower joint section through the knee axis and acts as a load-dependent brake. This together with proper knee alignment secures the stance phase. To control the swing phase, the axis friction and the spring force of the extension assist are adjustable.Specifications
| Activity Level | K1, K2 |
|---|---|
| Maximum Body Weight | 220 lbs (100 kg) |
| Material | Titanium |
| Proximal Connection | Pyramid Adapter |
| Distal Connection | Pyramid Adapter |
| Maximum Knee Flexion Angle | 150 degrees |
| Knee Center to Proximal Connection | 40 mm |
| Product Weight | 360 g |
| Build Height | 45 mm |
| Distal Build Height | 19 mm |
| Proximal Build Height | 26 mm |
Accessories

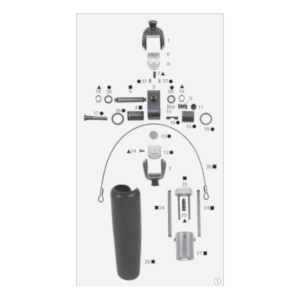

Spare parts
Documents
Fabrication Order Form for Transfemoral or Knee Disarticulation
Order Form
PDF Document | Published: Jul 2, 2021
LLP Prosthetist Documentation
Reimbursement: Documentation Guide
Reimbursement
PDF Document | Published: Apr 17, 2023
3R15 Stainless Steel Monocentric, 3R49 Titanium Modular Knee Joints - Instructions for Use
Instructions for Use
PDF Document | Published: Sep 1, 2021
