Overview
Taleo Vertical Shock was designed for active individuals (K3) who navigate varied indoor and outdoor environments and place a high value on effortless walking and the ability to go wherever life takes them.
Designed for optimal outcomes:
- The functional ring unit effectively absorbs torsion (+/- 10°) to relieve the residual limb and enhance comfort in everyday life in combination with vertical shock absorption (up to 15 mm)
- Dual springs and a long carbon base enable a smooth rollover and efficient energy return at varying speeds
- The unique flexible connection of the carbon springs in the forefoot result in optimal adaption
- Three different heel wedges to optimize gait dynamics and reduce impact forces
- Sizes 22 – 30 cm
- Up to 330 lbs / 150kg
- Build height with normal footshell (size 26) 7 ¼” (185mm)

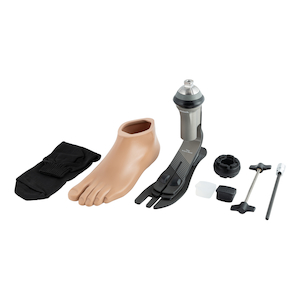

The scope of delivery for Taleo Vertical Shock includes the footshell with connection cap, the 2F50 heel wedge set (comprising three different degrees of hardness), a 2Z362 functional ring set for replacement, a pre-compression kit and a black Spectra sock.
Sometimes referred to as Taleo VS.
Specifications
| Activity Level | K3 |
|---|---|
| Maximum Body Weight | 330 lbs (150 kg) |
| Heel Height | Normal footshell (N) 10 +/- 5mm, Slim footshell (S) 15 +/- 5 mm |
| ~ Min. Clearance Height (Normal, Size 26 cm) | 185 mm (7 1/4") |
| Product weight (w/o footshell) (Size 26 cm) | 26.49 oz / 751 grams |
| Product weight (w/ footshell) (Size 26 cm) | 34.5 oz / 980 g |
| Footshell Shape | Normal (N), Slim (S) |
| Sizes | 22 cm - 30 cm |
| Footshell Color | Beige (4), Brown (15) |
| Side | Right (R), Left (L) |
| Standard Warranty | 3 years |
| 22 cm | 23 cm | 24 cm | 25 cm | 26 cm | 27 cm | 28 cm | 29 cm | 30 cm | |
| Up to 113 lbs (up to 51 kg) | 1 (S) | 1 (S) | 1 (S/N) | 1 (S/N) | 1 (N) | ||||
| 114 to 129 lbs (52 - 58 kg) | 2 (S) | 2 (S) | 2 (S/N) | 2 (S/N) | 2 (N) | ||||
| 130 to 149 lbs (59 - 67 kg) | 3 (S) | 3 (S) | 3 (S/N) | 3 (S/N) | 3 (N) | 3 (N) | 3 (N) | ||
| 150 to 170 lbs (68 - 77 kg) | 4 (S) | 4 (S) | 4 (S/N) | 4 (S/N) | 4 (N) | 4 (N) | 4 (N) | 4 (N) | 4 (N) |
| 171 to 195 lbs (78 - 88 kg) | 5 (S) | 5 (S) | 5 (S/N) | 5 (S/N) | 5 (N) | 5 (N) | 5 (N) | 5 (N) | 5 (N) |
| 196 to 220 lbs (89 - 100 kg) | 6 (S) | 6 (S/N) | 6 (S/N) | 6 (N) | 6 (N) | 6 (N) | 6 (N) | 6 (N) | |
| 221 to 254 lbs (101 - 115 kg) | 7 (S/N) | 7 (N) | 7 (N) | 7 (N) | 7 (N) | 7 (N) | |||
| 255 to 287 lbs (116 - 130 kg) | 8 (N) | 8 (N) | 8 (N) | 8 (N) | 8 (N) | ||||
| 288 to 330 lbs (131 - 150 kg) | 9 (N) | 9 (N) | 9 (N) | 9 (N) |
| 22 cm | 23 cm | 24 cm | 25 cm | 26 cm | 27 cm | 28 cm | 29 cm | 30 cm | |
| Up to 113 lbs (up to 51 kg) | 2 (S) | 2 (S) | 2 (S/N) | 2 (S/N) | 2 (N) | ||||
| 114 to 129 lbs (52 - 58 kg) | 3 (S) | 3 (S) | 3 (S/N) | 3 (S/N) | 3 (N) | ||||
| 130 to 149 lbs (59 - 67 kg) | 4 (S) | 4 (S) | 4 (S/N) | 4 (S/N) | 4 (N) | 4 (N) | 4 (N) | ||
| 150 to 170 lbs (68 - 77 kg) | 5 (S) | 5 (S) | 5 (S/N) | 5 (S/N) | 5 (N) | 5 (N) | 5 (N) | 5 (N) | 5 (N) |
| 171 to 195 lbs (78 - 88 kg) | 6 (S) | 6 (S/N) | 6 (S/N) | 6 (N) | 6 (N) | 6 (N) | 6 (N) | 6 (N) | |
| 196 to 220 lbs (89 - 100 kg) | 7 (S/N) | 7 (N) | 7 (N) | 7 (N) | 7 (N) | 7 (N) | |||
| 221 to 254 lbs (101 - 115 kg) | 8 (N) | 8 (N) | 8 (N) | 8 (N) | 8 (N) | ||||
| 255 to 287 lbs (116 - 130 kg) | 9 (N) | 9 (N) | 9 (N) | 9 (N) | |||||
| 288 to 330 lbs (131 - 150 kg) |
