Overview

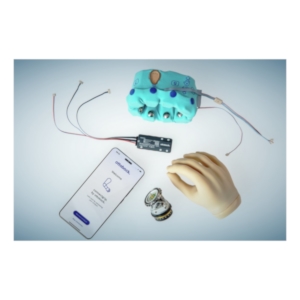

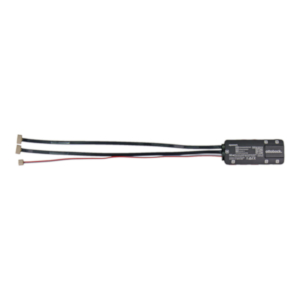

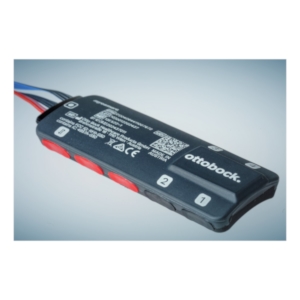

The myosmart Master is the component required to provide a user with myosmart myoelectric control, which is programmed with the connectgrip app. It is the doorway to app-based control and features for the clinician and the user. The myosmart myoelectric system provides personalized and precise control of prosthetic components. It uses advanced signal processing to detect muscle signals, ensuring adaptive and responsive movement bespoke to the user.
- Suitable for controlling a myoelectric prosthesis
- Personalized and adaptive control for seamless movement
- Advanced signal processing for muscle signal detection
- Up to 4 signal inputs, enabling excellent proportional control
- Compatible with speedhand, MyoBock Terminal Devices, Greifer, bebionic, DynamicArm, and ErgoArm
myosmart Scope of Delivery
- 1 pc. myosmart. 13E522=1
- 1 pc. 646C107=INT Bluetooth PIN card
- 1 pc. lug wrench
- 1 pc. lamination dummy for the control unit
- 1 pc. 623F50 electrode positioning jig
- 3 pcs. 13Z164 cable labels
- 1 pc. 13Z165 plug holder
- 1 pc. “No Carbon Zone” sticker
- 1 pc. Instructions for use (qualified personnel)
Specifications
| Reference number | 13E522 |
| Dimensions | 67 x 27 x 9.2 mm / 2.64 x 1.1 x 0.36 inch |
| Weight | 15 g / 0.53 oz |
| Operating voltage | Approx. 6 V to approx. 8.2 V |
| Current draw | Max. 25 mA |
| Power supply | 757B35=3 MyoEnergy Integral, =4, =5 or 757B20, 757B21 EnergyPack |
| Lifetime | 6 years |
| Wireless technology | Bluetooth 5.0 (Bluetooth Low Energy) |
| Distance range | Approx. 10 m / 32.8 ft |
| Frequency range | 2402 MHz to 2480 MHz |
| Modulation | GFSK |
| Data rate (over the air) | Up to 2 Mbps |
| Maximum output power (EIRP): | +4 dBm (~2.5 mW) |
| Remote electrode | |
| Reference number | 13E400=*, 13E401=* |
| Product lifetime | 5 years |
| Frequency bandwidth | 80-500 Hz |
| Sensitivity range | 1800x |
