ThermoLyn supra flexible
Item #: 616T112Overview
EVA Sheet Plastic available in sizes 400mm x 400mm and 1000mm x 1000mm.
646M69 swatch set available.
Areas of Application
- For fabricating of shoe-insoles

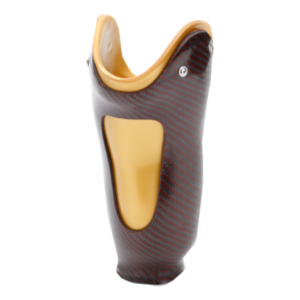

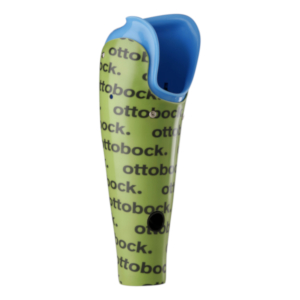

- For fabricating of flexible diagnostic/definitive sockets for foot prostheses
- For fabricating of flexible diagnostic sockets for lower and upper limb prostheses
- For fabricating of water-resistant splints and supports
- For fabricating of flaps and closures for orthoses
- For flexible prim designs for orthoses
- Permanently elastic
- Dimensionally stable
- High friction
- More comfortable socket edge design
- Comfortable to wear
- Large choice of colours
- Washable
- Subsequent welding possible
- Can be bonded to itself when heated
Temperature recommendation
- 100-130 °C / 212-266 °F (heating plate)
- 80-100 °C / 175-212 °F (infrared oven)
- 100-120 °C/ 212-248 °F (convection oven)
Specifications
Color | Length | Width | Thickness | Article Number |
---|---|---|---|---|
beige | 400 mm | 400 mm | 6 mm | 616T112=400x400x6 |
beige | 400 mm | 400 mm | 9 mm | 616T112=400x400x9 |
beige | 400 mm | 400 mm | 12 mm | 616T112=400x400x12 |
beige | 400 mm | 400 mm | 15 mm | 616T112=400x400x15 |
beige | 1000 mm | 1000 mm | 2 mm | 616T112=2-0 |
beige | 1000 mm | 1000 mm | 3 mm | 616T112=3-0 |
beige | 1000 mm | 1000 mm | 4 mm | 616T112=4-0 |
beige | 1000 mm | 1000 mm | 5 mm | 616T112=5-0 |
black | 400 mm | 400 mm | 5 mm | 616T112=40x40x5-7 |
black | 1000 mm | 1000 mm | 5 mm | 616T112=5-7 |
(see color options below) | 1000 mm | 1000 mm | 2 mm | 616T112=2-(color listed below)* |
(see color options below) | 1000 mm | 1000 mm | 4 mm | 616T112=4-(color listed below)* |
*Insert number for the selected color from the list below: |
||||

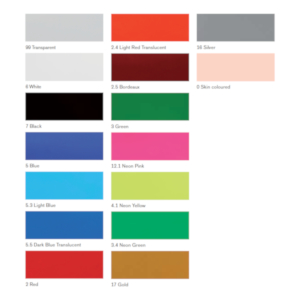

Beige (0), transparent (99), white (6), black (7), blue (5), light blue (5.3), dark blue translucent (5.5), red (2), light red translucent (2.4), bordeaux (2.5), green (3), neon pink (12.1), neon yellow (4.1), neon green (3.4), gold (17), silver (16) |
Documents
ThermoLyn for flexible diagnosis and definitive sockets - Information for specialist dealers
Product Information
PDF Document | Published: Sep 1, 2014
Materials Thermoplastics in orthopedic technology
Product Information
PDF Document | Published: Jan 1, 2014
New Products & Proven Classics in Materials, Components & Solutions
Product Information
PDF Document | Published: Oct 1, 2016
