Graticule Laser

Item #: 743L5

Added to your shopping cart

Overview

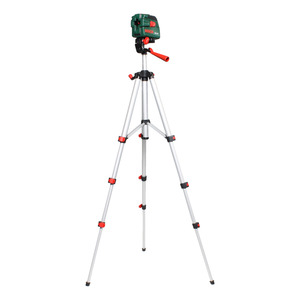

Automatically levelling graticule laser with vertical and horizontal laser line. The laser lines can be switched individually and together form crossing lines. In addition, the laser is equipped with a laser spot. The laser beam is easily visible in daylight and can be mounted on a stand. In addition, the pendulum system can be locked for transportation.

Scope of delivery includes: 1 graticule laser, 1 tripod stand, 1 protective pouch and 3 5V LR06 Mignon (AA) batteries.

Specifications

Dimensions LxWxH	110 x 60 x 95 mm
Power supply	3 x Mignon (AA)
Wavelength	635 (Laser class 2) nm
Output power	< 1 mW
Leveling speed	< 5 sec.
Automatic leveling range	5 degrees
Connection thread	W 1/4"
Laser light color	Red
Projection range of laser light	max. 10 m
Weight (with batteries)	460 g
