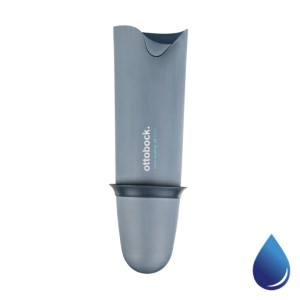

Skeo Sealing 3D

Item #: 6Y111

The Skeo Sealing 3D liner is a silicone liner with a sealing ring for TF users. It has a more conical shape than the standard Skeo Sealing liner, with the height of the sealing ring and appearance remaining the same.

Added to your shopping cart

Overview

Introducing the latest addition to the Skeo Sealing liner family: 6Y111 Skeo Sealing 3D liner.

The Skeo Sealing family consists of two liners for TF amputees: the Skeo Sealing with standard shape and the Skeo Sealing 3D, which has a more conical shape. Height of the sealing ring and appearance remains the same.

Maximum vacuum adhesion is achieved with a choice of two sealing heights of the sealing ring on the liner (10 cm or 17 cm between the sealing ring and the distal end of the liner). Thanks to a special procedure, the sealing ring is permanently bonded to the liner. In contrast to glued variants, the sealing ring cannot separate from the body of the liner. Vacuum is achieved below the ring when an expulsion valve is used with the Skeo Sealing liner.

Benefits at a glance:

Single sealing ring available at 2 different heights. (10 cm or 17 cm)
Textured inner surface for soft feel and good connection to limb
Slick outer surface without textile for easy donning and doffing
No-Stretch Matrix the entire length of liner for reduced elongation and good tissue management

Try our Interactive Liner Selection Tool here: https://academy.ottobockus.com/toolbox/liners/liners

Specifications

Sizes in mm (see distal circumference)	Ring height 10 cm	Ring height 17 cm
	250 x 10	250 x 17
	265 x 10	265 x 17
	280 x 10	280 x 17
	300 x 10	300 x 17
	320 x 10	320 x 17
	340 x 10	340 x 17
	360 x 10	360 x 17
	380 x 10	380 x 17
	400 x 10	400 x 17
	450 x 10	450 x 17

Order Example	6Y111=450x10

Skeo Sealing 3D

Overview

Specifications

Documents

Refine results

6Y111 Instructions for Use

6Y111 Socket Fabrication Instructions

6Y110 and 6Y110 Skeo Sealing Liner Family Product Brief

Selection chart for TF liners
