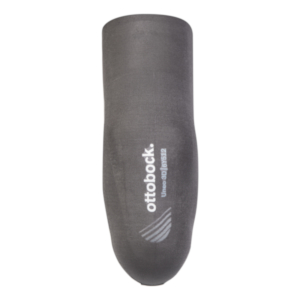

Uneo 3D
Item #: 6Y512
Overview
Our most advanced off-the-shelf liner with Anatomy Specific Geometry for patient comfort.
- Fresh Scent Option to mask odors (-P) (cannot be combined with Skinguard)
- Anatomy Specific Geometry provides anatomical shape and different wall thicknesses – thicker in sensitive areas to provide protection, and thinner in other areas to increase flexibility and wearer comfort
- Pre-flexed 20 degrees, reducing wrinkles behind the knee while providing easier flexion
- Excellent flow characteristics of the polyurethane material ensures even pressure distribution and material durability
- Special textured interior structure in the liner disperses moisture, which can be washed out through daily cleaning
- Non-stick treatment for easy donning and doffing
- Two versions available: an uncovered version for maximum flow characteristics and easy cleaning, and a version with a partial fabric sheath for ease of donning and sleeve protection
- Available with Skinguard, which has been proven to effectively inhibit the growth of bacteria and prevent unpleasant odors
- For below-knee fittings in patients of all activity levels
- Suitable for sensitive, bony, and/or scarred residual limbs
- Ideal for use with a one-way valve or with the Harmony vacuum volume management system and a sealing sleeve
Serial number location: To find serial number, invert liner inside out and look at the distal end for the laser etched information. Talc powder rubbed on etching may help to read.
Specifications
Part number | 6Y512=* | 6Y512=*-F | 6Y512=*-G | 6Y512=*-F-G | 6Y512=*-F-P | 6Y512=*-P |
---|---|---|---|---|---|---|
Type of Liners | TransTibial (TT) | TransTibial (TT) | TransTibial (TT) | TransTibial (TT) | TransTibial (TT) | TransTibial (TT) |
Liner Material | Urethane | Urethane | Urethane | Urethane | Urethane | Urethane |
Suspension Method | Cushion/Valve, Harmony Vacuum |
Cushion/Valve, Harmony Vacuum |
Cushion/Valve, Harmony Vacuum |
Cushion/Valve, Harmony Vacuum |
Cushion/Valve, Harmony Vacuum |
Cushion/Valve, Harmony Vacuum |
Covering | Uncovered | Partial fabric | Uncovered | Partial fabric | Partial fabric | Uncovered |
Fresh Scent | n/a | n/a | n/a | n/a | Yes | Yes |
Antibacterial | n/a | n/a | Skinguard | Skinguard | n/a | n/a |
Shape | Preflexed | Preflexed | Preflexed | Preflexed | Preflexed | Preflexed |
Sizes | 210X125 210X175 235X125 235X175 250X75 265X125 265X175 280X125 280X175 300X125 300X175 |
210X125-F 210X175-F 235X125-F 235X175-F 250X75-F 265X125-F 265X175-F 280X125-F 280X175-F 300X125-F 300X175-F |
210X125-G 210X175-G 235X125-G 235X175-G 250X75-G 265X125-G 265X175-G 280X125-G 280X175-G 300X125-G 300X175-G |
210X125-F-G 210X175-F-G 235X125-F-G 235X175-F-G 250X75-F-G 265X125-F-G 265X175-F-G 280X125-F-G 280X175-F-G 300X125-F-G 300X175-F-G |
210X175-F-P 235X125-F-P 235X175-F-P 250X75-F-P 265X125-F-P 265X175-F-P 280X125-F-P 280X175-F-P 300X125-F-P 300X175-F-P |
235X125-P 235X175-P 250X75-P 265X125-P 265X175-P 280X125-P 280X175-P 300X125-P 300X175-P |
Documents
Anatomic 3D PUR Liner
Product Information: (EN)
Publish date:
Interactive Liner Selection Tool
Product Information: (EN)
Publish date: Jun 1, 2018
Anatomic 3D PUR Liner 6Y512
Product Information: 646D451 (EN/DE/FR/ES)
Publish date: Oct 1, 2012
Liner Chart
Product Information: 13937 (EN)
Publish date: Feb 1, 2018
Liner Comparison Card
Product Information: (EN)
Publish date: Mar 1, 2018
6Y430, 6Y540, 6Y400, 6Y416, 6Y510, 6Y512, 6Y520, 6Y521, 6Y522, 6Y523 Polyurethane Liners - Instructions for Use
Instructions for Use: 647G1144 (EN/DE/FR/IT/ES/PT/NL/SV/DA/NO/FI/PL/HU/CS/RO/HR/SL/SK/BG/TR/EL/RU/JA/ZH/KO)
Publish date: Apr 1, 2018
