Overview

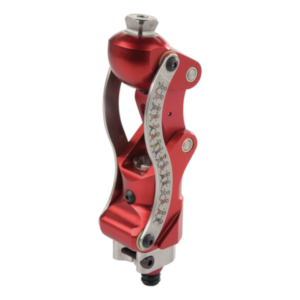

A rotation unit integrated in the lower joint section permits rotation of the prosthetic foot with automatic return upon load relief. Combined with the large flexion angle of approx. 165°, this enables a comfortable 'kneeling position' as well as crouching with the foot rotated to the outside.
- Individually adjustable knee safety thanks to adjustable stop
- Individually adjustable extension assist mechanism to control the swing phase
- Not suitable for hip disarticulate fittings
Specifications
Material | Aluminum |
---|---|
Maximum Body Weight | 77 lbs (35 kg) |
Proximal Connection | Pyramid Adapter |
Distal Connection | Tube Clamp (22 mm diameter) |
Maximum Knee Flexion Angle | 175 degrees |
Knee Center to Proximal Connection | 17 mm |
Product Weight | 310 g |
Version | Polycentric |
Build Height | 118 mm |
Distal Build Height | 110 mm |
Proximal Build Height | 8 mm |
Accessories
Spare parts
Documents
3R66 Pediatric Polycentric Knee Joint - Instructions for Use
Instructions for Use
PDF Document | Published: Dec 16, 2020
Lower Limb Prosthesis Documentation Guide for Medicare and Medicare Advantage
Reimbursement
PDF Document | Published: Dec 2, 2024
