SACH Foot Men 18mm Toes

Item #: 1S66
Log in to order

Overview

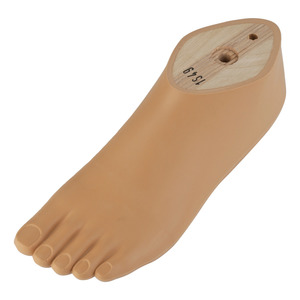

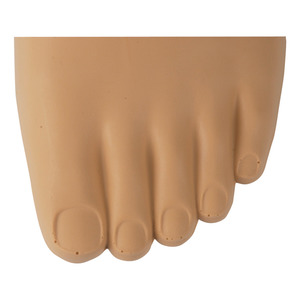

The 1S49, 1S66 and 1S67 SACH feet have different heel heights and foot shapes. The 1S49 and 1S66 have a standard foot shape while the 1S67 is slimmer. Both feet have a natural shape, smooth surface and formed toes. The functional properties are achieved through the proven combination of a contoured core and functional foam. The SACH feet are constructed for use in modular prostheses and exoskeletal prostheses.

1S49:

  • Heel height: 10 +/- 5 mm
  • Normal footshell shape
  • Size 21-28 cm


1S66:

  • Heel height: 18 +/- 5 mm
  • Normal footshell shape
  • Size 22-30cm


1S67:

  • Heel height: 35 +/- 5 mm
  • Slim footshell shape
  • Size 22-26 cm

Specifications

Size Max. Body Weight Heel Height Product Weight (without Adapter), approx. Minimum Clearance Height (approx.) Color Article Number (Left Foot) Article Number (Right Foot)
22 cm 220 lbs / 100 kg 18 +/- 5 mm 325 g 86 mm beige 1S66=L22 1S66=R22
23 cm 220 lbs / 100 kg 18 +/- 5 mm 325 g 86 mm beige 1S66=L23 1S66=R23
24 cm 220 lbs / 100 kg 18 +/- 5 mm 360 g 86 mm beige 1S66=L24 1S66=R24
25 cm 220 lbs / 100 kg 18 +/- 5 mm 395 g 86 mm beige 1S66=L25 1S66=R25
26 cm 275 lbs / 125 kg 18 +/- 5 mm 485 g 86 mm beige 1S66=L26 1S66=R26
27 cm 275 lbs / 125 kg 18 +/- 5 mm 555 g 86 mm beige 1S66=L27 1S66=R27
28 cm 275 lbs / 125 kg 18 +/- 5 mm 565 g 86 mm beige 1S66=L28 1S66=R28
29 cm 275 lbs / 125 kg 18 +/- 5 mm 625 g 86 mm beige 1S66=L29 1S66=R29
30 cm 275 lbs / 125 kg 18 +/- 5 mm 625 g 86 mm beige 1S66=L30 1S66=R30

Documents

Refine results

Safety Data Sheet

Safety Data Sheet

PDF Document | Published: Mar 6, 2015

Function Matrix – Prosthetic Feet

Product Information

PDF Document | Published: Sep 1, 2012

1S*: SACH Foot - Safety Data Sheet

Safety Data Sheet

PDF Document | Published: Mar 6, 2015

WP002 - Safety Data Sheet

Safety Data Sheet

PDF Document | Published: Mar 22, 2018

Instructions for Use - 1S66 SACH Foot

Instructions for Use

PDF Document | Published: Sep 30, 2021
