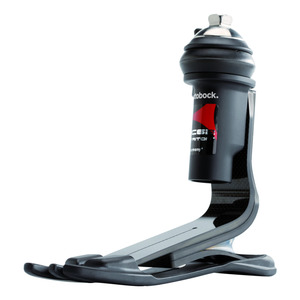

The Triton Harmony combines the outstanding functionality of the 1C60 Triton carbon foot with the proven Harmony P3 technology. This results in a highly functional, compact foot system with integrated Harmony pump for the fabrication of a socket system with a greater vacuum, additional shock absorption and torsion capability.
The Harmony system improves adhesion between the residual limb and the prosthesis, resulting in enhanced proprioception and an additional plus in safety in any situation. Furthermore, the residual limb volume is stabilized and circulation is promoted.
Compared to the use of separate components, the 1c62 Triton Harmony offers a weight advantage and reduced structural height. This means patients with a longer transtibial residual limb can also benefit from the combination of Triton features with Harmony vacuum technology.
The scope of delivery for the Triton Harmony includes a Spectra-Sock, the footshell including connection cap, a transparent (soft) and anthracite (firm) heel wedge, a pump with pre-assembled functional ring, socket connector and sound absorber.
| Activity Level | K3, K4 |
|---|---|
| Maximum Body Weight | 330 lbs (150 kg) |
| Heel Height | Normal footshell (N) 10 +/- 5mm, Slim footshell (S) 15 +/- 5 mm |
| Footshell Color | Beige (4), Brown (15) |
| Footshell Shape | Normal (N), Slim (S) |
| Side | Right (R), Left (L) |
| Sizes | 21 cm - 30 cm |
| Stiffness | 1, 2, 3, 4, 5 |
| Functional Ring | 0, 1, 2, 3, 4, 5, 6, 7, 8, 9 |
| Standard Warranty | 3 years |
| Product weight (w/o footshell) | 655 g - 840 g |
| Product weight (w/ footshell) (Size 26 cm) | 34.5 oz / 980 g |
| ~ Min. Clearance Height (Slim, Size 21cm) | 196 mm (7 3/4") |
| ~ Min. Clearance Height (Slim, Size 22cm) | 197 mm (7 3/4") |
| ~ Min. Clearance Height (Slim, Size 23cm) | 199 mm (7 5/8") |
| ~ Min. Clearance Height (Slim, Size 24cm) | 200 mm (7 5/8") |
| ~ Min. Clearance Height (Slim, Size 25cm) | 208 mm (8 3/16") |
| ~ Min. Clearance Height (Slim, Size 26-27 cm) | 210 mm (8 1/4") |
| ~ Min. Clearance Height (Normal, Size 24 cm) | 201 mm (7 5/8") |
| ~ Min. Clearance Height (Normal, Size 25 cm) | 203 mm (8") |
| ~ Min. Clearance Height (Normal, Size 26 cm) | 205 mm (8 1/16") |
| ~ Min. Clearance Height (Normal, Size 28 cm) | 211 mm (8 5/16") |
| ~ Min. Clearance Height (Normal, Size 29 cm) | 217 mm (8 1/2") |
| ~ Min. Clearance Height (Normal, Size 30 cm) | 219 mm (8 5/8") |
| 21 cm | 22 cm | 23 cm | 24 cm | 25 cm | 26 cm | 27 cm | 28 cm | 29 cm | 30 cm | |
|---|---|---|---|---|---|---|---|---|---|---|
| 106 to 122 lbs (48 - 55 kg) | 1-1 (S) | 1-1 (S) | 1-1 (S) | 1-1 (S/N) | 1-1 (S/N) | 1-1 (S/N) | ||||
| 123 to 144 lbs (56 - 65 kg) | 2-2 (S) | 2-2 (S) | 2-2 (S) | 2-2 (S/N) | 2-2 (S/N) | 2-2 (S/N) | 2-2 (S/N) | 2-2 (N) | 2-2 (N) | 2-2 (N) |
| 145 to 166 lbs (66 - 75 kg) | 2-3 (S) | 2-3 (S) | 2-3 (S) | 2-3 (S/N) | 2-3 (S/N) | 2-3 (S/N) | 2-3 (S/N) | 2-3 (N) | 2-3 (N) | 2-3 (N) |
| 167 to 193 lbs (76 - 87 kg) | 3-4 (S) | 3-4 (S) | 3-4 (S) | 3-4 (S/N) | 3-4 (S/N) | 3-4 (S/N) | 3-4 (S/N) | 3-4 (N) | 3-4 (N) | 3-4 (N) |
| 194 to 221 lbs (88 - 100 kg) | 3-5 (S) | 3-5 (S) | 3-5 (S) | 3-5 (S/N) | 3-5 (S/N) | 3-5 (S/N) | 3-5 (S/N) | 3-5 (N) | 3-5 (N) | 3-5 (N) |
| 222 to 248 lbs (101 - 112 kg) | 4-6 (S/N) | 4-6 (S/N) | 4-6 (S/N) | 4-6 (N) | 4-6 (N) | 4-6 (N) | ||||
| 249 to 276 lbs (113 - 125 kg) | 4-7 (S/N) | 4-7 (S/N) | 4-7 (S/N) | 4-7 (N) | 4-7 (N) | 4-7 (N) | ||||
| 277 to 303 lbs (126 - 137 kg) | 5-8 (S/N) | 5-8 (S/N) | 5-8 (S/N) | 5-8 (N) | 5-8 (N) | 5-8 (N) | ||||
| 304 to 330 lbs (138 - 150 kg) | 5-9 (S/N) | 5-9 (S/N) | 5-9 (S/N) | 5-9 (N) | 5-9 (N) | 5-9 (N) |
