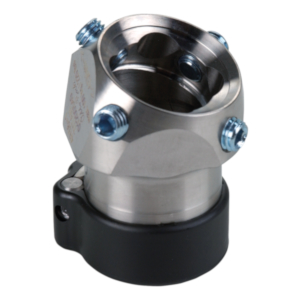

Tube Adapter,Angled,Titan (10 degrees)

Item #: 4R56

Added to your shopping cart

Overview

The adapter is available with 3 different angles. In prosthetic fittings with 7E5, 7E4 or 7E7 Hip Joints, it forms the adjustable connection between the pyramid adapter of the knee joint or the 4R57 Rotation Adapter and the hip joint tube. According to the direction of the tube, it forms an angle of 10°, 20° or 30° with the hip joint offset to the front.

In prosthetic fittings with Helix3D Hip Joint System, the adapter is intended for the adjustable proximal connection of the hip joint to the 2R30 Thigh Tube and for the adjustable distal connection of the 2R30 Thigh Tube to the pyramid adapter of the knee joint or the 4R57 Rotation Adapter.

The 4R56=1/=2 Tube Clamp Adapter with a 20°/30° angle is recommended for larger pelvic sockets. When using '=HD' knee joints, please consider the 10° angle of the pyramid adapter.
