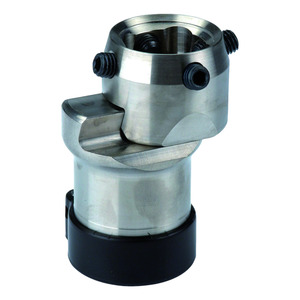

Sliding Adapter -Titanium-

Item #: 4R88
Log in to order

Overview

The adapter allows additional sliding adjustments between the prosthetic socket and tube adapter, even while the prosthesis is worn. These fine tunings allow a parallel shifting of the distal portion regardless of the adjustment angle set by the pyramid adapters. The prosthetic foot can be shifted medially or laterally in the frontal plane, or dorsally or ventrally in the sagittal plane.

Specifications

Material Titanium
Maximum Body Weight 220 lbs (100 kg)
Diameter 34 mm
Product Weight 185 g
Displacement +/- 11
Build Height 78 mm

Documents

Refine results

4R88 Sliding Adapter - Instructions for Use

Instructions for Use

PDF Document | Published: Aug 9, 2021
