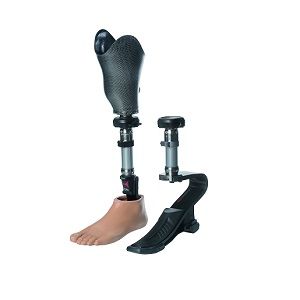

OverviewThe 4R10=111 Quickchange adapter allows the user to easily and quickly remove the foot from the prosthesis or be able to switch to a secondary foot for specialty applications such as but not limited to shower feet, swim foot, sports feet, different heel height shoes. Removing the foot can also help in tight situations or when changing clothes. The self-aligning design allows the user to change components without affecting alignment.

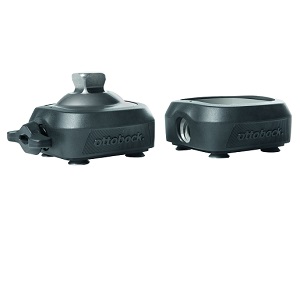

The Ottobock 4R10=111 comes automatically with 2 lower connectors for use with 2 feet. The unique magnet connection holds the 2 components in place so the pin can easily be inserted by the user.
|Activity Level||K2, K3, K4|
|Max. body weight||275 lbs / 125 kg|
|Field of application||TT, TF/KD/HD below the knee joint|
|Distal connection||4-hole connection|
|Proximal Connection||Pyramid Adapter|
|Part Weight||7.75 oz (220 g)|
|Part Clearance||1 1/4” (31 mm)|
|Waterproof||Fresh and Salt waterproof|
4R10=111 Quickchange Adapter - Instructions for Use
Instructions for Use: (DE/EN/FR/IT/ES/PT/NL/SV/DA/NO/FI/PL/HU/CS/RO/HR/SL/SK/BG/TR/EL/RU/JA/ZH/KO)
Publish date: Jun 2, 2020
4R10=111 Quickchange Adapter - Specification Sheet
Product Information: (EN)
Publish date: Aug 1, 2018
