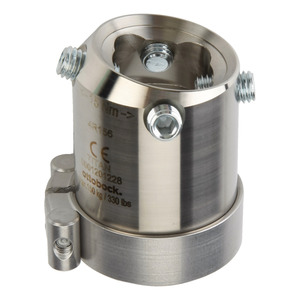

The adapter is available with 3 different angles. Due to its high load-bearing capacity, it is preferable for use in combination with the 7E9 Hip Joint. Here the adapter is intended for the adjustable proximal connection of the hip joint to the 2R36 Thigh Tube and for the adjustable distal connection of the 2R36 Thigh Tube to the pyramid adapter of the knee joint or the 4R57 Rotation Adapter.
The 4R156=1/=2 Tube Clamp Adapter with a 20°/30° angle is recommended for larger pelvic sockets. When using '=HD' knee joints, please consider the 10° angle of the pyramid adapter.
| Build Height | 50 mm |
|---|
| Article number | 4R156 | 4R156=1 | 4R156=2 | 2R36 |
|---|---|---|---|---|
| Description | Tube clamp adapter | Tube clamp adapter | Tube clamp adapter | Tube |
| Weight | 36 g | 37 g | 38 g | 210 g |
| Material | Titanium | Titanium | Titanium | Aluminum |
| Diameter | 34 mm | 34 mm | 34 mm | 34 mm |
| Tilt angle | 10 degrees | 20 degrees | 30 degrees | na |
| Max. body weight | 330 lbs / 150 kg | 330 lbs / 150 kg | 330 lbs / 150 kg | 330 lbs / 150 kg |
Instructions for Use
PDF Document | Published: Jan 29, 2013
Instructions for Use
PDF Document | Published: Jul 10, 2020
