Overview

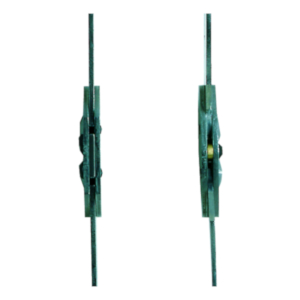

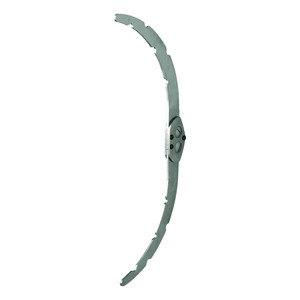

Stainless steelWith gear drive and free motion joints. Upper and lower bars are curved and notched. For embedding into laminate and thermoplastics. Interchangeable stops to limit extension.
Specifications
Upper Length from Joint Center | 340 mm |
---|---|
Lower Length from Joint Center | 300 mm |
Pivot Point Distance | 16 mm (0.629 in) |
Bar Width | 21 mm |
Bar Thickness | 2 mm (0.0787 in) |
Joint Thickness | 6 mm |
Material | Stainless Steel |
Quantity | Pair |
Spare parts
Documents
Processing instructions for Ottobock system bars and leg bars – stainless steel –
Product Information
PDF Document | Published: Jul 1, 2013
