Overview

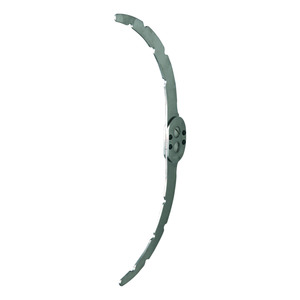

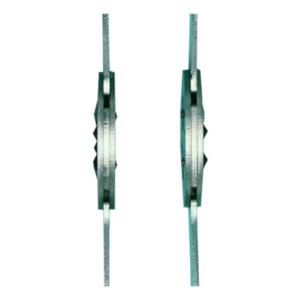

Stainless steelWith gear drive. Joints have interchangeable stops to limit extension as well as flexion (ranges listed below). Upper and lower bars are curved and notched. For embedding into laminates and thermoplastics.
Specifications
Upper Length from Joint Center | 340 mm |
---|---|
Lower Length from Joint Center | 300 mm |
Pivot Point Distance | 16 mm (0.629 in) |
Bar Width | 21 mm |
Bar Thickness | 2 mm (0.0787 in) |
Joint Thickness | 6 mm |
Material | Stainless Steel |
Quantity | Pair |

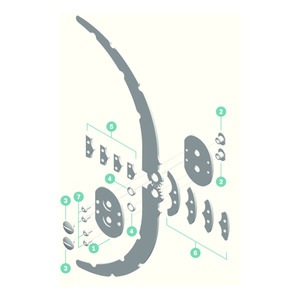

Spare parts
Documents
Processing instructions for Ottobock system bars and leg bars – stainless steel –
Product Information
PDF Document | Published: Jul 1, 2013
