Multifunction Correction System Joints

Item #: 17BK1=L4
Static joints for positioning orthoses
Log in to order

Overview

The objectives of contracture treatment are to restore joint functionality and avoid deformities. The static correction joint system for the upper and lower extremity (hand, elbow, knee, and ankle joints) is suitable for fittings for adults as well as children. It is used in positioning orthoses with the joints matching the known dimensions of the Ottobock portfolio of joint bars. The individually required angles are continuously adjustable by means of a worm gear. For orientation, control and targeted adjustment of the correction, an angle scale is printed on the joints. An easy-on, easy-off system has been developed for quick application and removal of the orthosis, allowing correction to be disengaged completely. Another setting option is the unlocking of the joint, which can be set to any extension stop angle. This allows for physiotherapeutic training as well as installation of a dynamic unit. Anodized aluminum with worm gear of steel, Static joints for positioning orthoses Delivery condition: The joint is supplied with an adjustment wrench.

Specifications

Side Left
System Width 12 mm (0.472 in)
Material Aluminum
Quantity Piece

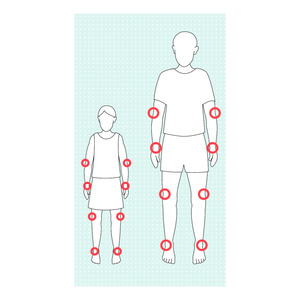

Size Recommentation: This information constitutes recommendations only. The correct size for the respective patient has to be determined and specified by the orthotist.
Body Height Wrist Joint Elbow Joint Knee Joint Ankle Joint
Child up to 1 m 17BK1=L4, 17BK1=R4 17BK1=L4, 17BK1=R4 17BK1=L4, 17BK1=R4 17BK1=L4, 17BK1=R4
Child 1 - 1.40 m 17BK1=L3, 17BK1=R3 17BK1=L3, 17BK1=R3 17BK1=L3, 17BK1=R3 17BK1=L3, 17BK1=R3
Adults up to 1.60 m 17BK1=L2, 17BK1=R2 17BK1=L2, 17BK1=R2 17BK1=L2, 17BK1=R2 17BK1=L2, 17BK1=R2
Adults 1.60 - 1.90 m 17BK1=L1, 17BK1=R1 17BK1=L1, 17BK1=R1 17BK1=L1, 17BK1=R1 17BK1=L1, 17BK1=R1
