Overview
Walking safely with dorsal flexor weakness
The 28U90 ankle foot orthosis is particularly well suited in case of temporary dorsal flexor weakness or if only short distances are covered. It lifts the foot and reduces the risk of stumbling.
At a glance
- Low weight
- Thermoformable
- Replaceable pad
- Passive, flexible limitation of plantar flexion
- Long sole for exact foot guidance
- Good hygienic properties
With the 28U90 dorsiflexion assist orthosis, the anterior portion of the foot is raised and passive, flexible limitation of plantar flexion is provided in case of peroneal weakness. The thin-walled design with a high-quality surface increases resilience. This allows you to offer your customer effective support at a low weight. The long sole ensures exact guidance of the foot and good pressure distribution.
The 28U90 ankle foot orthosis was designed for rapid, temporary use as an initial fitting, for example after an injury. Since it is easy to adapt, it is particularly well suited for early patient mobilisation.
The ankle foot orthosis is thermoformable, which means it can be reshaped for individual adaptation of the orthosis to the patient.
The innovative new pad is equipped with hook-and-loop closures on both the left and right, making the orthosis suitable for use on either side. Hook-and-loop material that is not needed can be easily sewn in place.
The pad is also washable and can be replaced with a new pad at any time.
Specifications

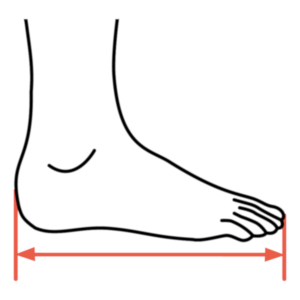

| Size | Men's Shoe Size | Women's Show Size | Euro Shoe Size | Height | Transparent Left | Transparent Right | Black Left | Black Right |
|---|---|---|---|---|---|---|---|---|
| S | 2.5 - 4.5 | 4.5 - 6.5 | 35 - 37 | 11.8 in (30.0 cm) | 28U90=L35-37-0 | 28U90=R35-37-0 | 28U90=L35-37-7 | 28U90=R35-37-7 |
| M | 4.5 - 6 | 6.5 - 8 | 37 - 39 | 12.9 in (33.0 cm) | 28U90=L37-39-0 | 28U90=R37-39-0 | 28U90=L37-39-7 | 28U90=R37-39-7 |
| L | 6 - 8 | 8 - 10 | 39 - 41 | 13.6 in (34.5 cm) | 28U90=L39-41-0 | 28U90=R39-41-0 | 28U90=L39-41-7 | 28U90=R39-41-7 |
| XL | 10.5 - 12.5 | 12.5 - 14.5 | 41 - 44 | 15.4 in (39.0 cm) | 28U90=L41-44-0 | 28U90=R41-44-0 | 28U90=L41-44-7 | 28U90=R41-44-7 |
| XXL | 12.5 - 14.5 | 14.5 - 16.5 | 44 - 47 | 16.3 in (41.5 cm) | 28U90=L44-47-0 | 28U90=R44-47-0 | 28U90=L44-47-7 | 28U90=R44-47-7 |
Documents
28U90 Ankle Foot Orthosis - Instructions for Use
Instructions for Use
PDF Document | Published: Mar 22, 2022
28U9 Thermoplastic AFO - Instructions for Use
Instructions for Use
PDF Document | Published: May 21, 2013
