Nexgear Tango Ankle Joint

Item #:17AD100=20-T
Double action ankle joint

Expected Availability 6/14/19
Log in to order

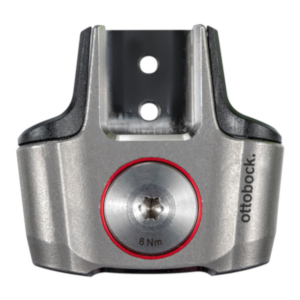

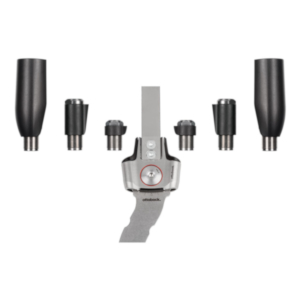

The versatile Nexgear Tango double action ankle joint improves mobility for patients with paralysis, or partial paralysis, of the leg muscles. Three different function modules (Stop Module, Spring Module, Reaction Module) allow customization and adaptation at any point throughout the entire rehabilitation process.

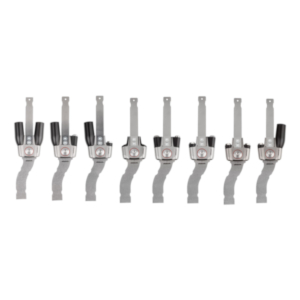

Nexgear Tango ensures the highest possible range of motion in the ankle, allowing walking to become more physiological, dynamic, and effective. The joint body (stainless steel or titanium) is available in five sizes based on weight classification for adults and children.

Features & Benefits

  • Three removable function modules allow flexibility to customize the joint to a user's individual needs, improving motion sequences throughout various gait phases
  • High level of energy return with maximum freedom of movement in the ankle, enabling controlled plantar flexion, support for knee extension, dynamic toe-off, and strong dorsal support
  • Separate static and dynamic alignment settings based on the user's needs

Partial or total paralysis of the leg muscles, particularly in neurological diseases including:

  • Incomplete spinal cord injury (ISC)
  • Traumatic brain injury
  • Infantile cerebral palsy
  • Stroke

Dimensions 57 mm x 60 mm
Weight with Bearings 84 g (0.185 lbs)
System Width 20 mm (0.787 in)
Maximum Body Weight 243 lbs (unilateral) / 353 lbs (bilateral)
Material Titanium
Unit Piece

17AD100 Nexgear Tango - Instructions for Use

Instructions for Use: 647G1220-03-1805 (DE/EN/FR/IT/ES/PT/NL/SV/DA/NO/FI/CS/SK/RU/ZH)

Published Date: September 18, 2018

17AD100 Nexgear Tango - Order Form

Order Form: 15905 (EN)

Published Date: September 18, 2018

17AD100 Nexgear Tango SCO Selection Guide

Product Information: 15907 (EN)

Published Date: September 18, 2018

17AD100 Nexgear Tango - Brochure

Product Information: 15857 (EN)

Published Date: September 18, 2018

17AD100 Nexgear Tango Ankle Joint Selection Guide

Product Information: 15883 (EN)

Published Date: September 18, 2018
