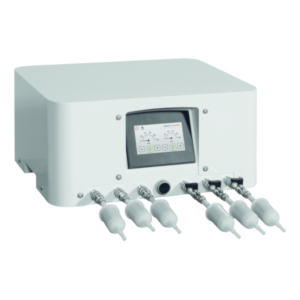

Two separately controllable vacuum circuits with 6 pc. vacuum outlets, 3 pc. ball valves for regulating the vacuum, 6 pc. external filters, 2 pc. external water tanks, water tank also serves as vacuum tank, touchscreen incl. timer with alarm function and warning signal when water tank is full, incl. 755Z44 protective film for touchscreen
Dimensions WxDxH 16 7/8 x 15 3/8 x 8 1/4 inch
Pressure, adjustable 6.5 inHG (=78 %)
Suction power 0.9 cfm
Electrical connection in V/Hz/kW 1 x 110 N/PE / 60/ 0,11
Connecting cable 78 3/4 inch, power plug 5-15P
Color Signal white (RAL 9003)
To be used for For fabricating thin-walled resin laminates, for thermoplastic forming of synthetic materials
