Item #: 9S501

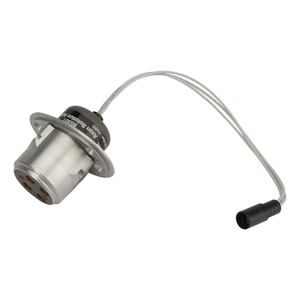

Passive Rotation unit for the Michelangelo hand
Log in to order

Détails du produit

Passive AxonRotation unit for the Michelangelo hand.

The AxonRotation Adapter 9S501 allows passive pronation/supination. These functions support the patient during his or her daily activities and provide the highest rehabilitation value. The AxonRotation Adapter 9S501 promotes a physiologically correct body posture and reduces the need for unnatural, compensating body movements.

Passive, unlimited 360° pronation/supination of the Axon-Bus gripping component is possible from an activation moment > 2.0 Nm via the integrated ratchet system. There are 24 ratchet positions, one at every 15°, for this purpose.


  • Rotation: Passive (9S503 Active Rotation unit also available)
  • Length: 52 mm
  • Pronation: 360 degrees (24 ratchet positions)
  • Supination: 360 degrees (24 ratchet positions)
  • Weight: approx. 90 g / 3.17 oz


Refine results

Axon-Bus Prosthetic System - Instructions for use (user)

Notice d’utilisation

Document PDF | Date de publication : 16 déc. 2020

9S501 AxonRotation Adapter - Passive - Instructions for Use

Notice d’utilisation

Document PDF | Date de publication : 17 août 2015
