KIT D'AJUSTAGE P/ARTICULATIONS D'ORTHESE

Item #: 743R6

Added to your shopping cart

Détails du produit

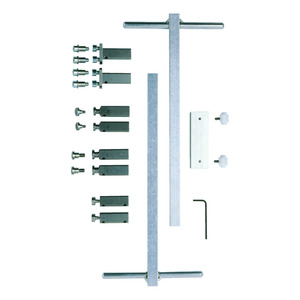

To be used for as an aid for leg orthosis fabrication, suitable for the "structural orthosis fabrication" technique based on a drawing and for the lamination resin and vacuum-forming techniques based on a plaster cast

(a) 743Y55 alignment axis – Light metal –
(b) 743Y70=80 parallel adapter, width 80 mm (standard) or 743Y70=50 parallel adapter, width 50 mm (accessory) – Light metal –
(c) 743Y56=1 alignment adapter, for gear segment bars – Stainless steel –
(d) 743Y56=2 alignment adapter with 12x7.6 pin flange – Stainless steel – and 501A1=12x7xM4 shoulder screw
(e) 743Y56=3 alignment adapter with 14x9.6 pin flange – Stainless steel – and 501A1=14x9xM6 shoulder screw
(f) ?743Y56=4 alignment adapter with M4 and M6 thread retainer? and 501A12=3 shoulder screw – Stainless steel –
(g) 743Y72 Allen screw with collar
(h) 501A1=12x6xM4 shoulder screw for 743Y56=2 alignment adapter
(i) 501A1=12x8xM6 size 3 shoulder screw for alignment adapter
(j) 709S10=2.5 Allen key
(k) Shoulder screws: 30Y89, 30Y248=20, 30Y248=14-16, 30Y248=12
